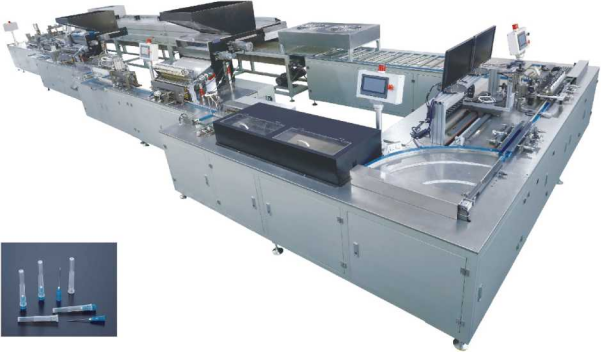

Hypodermic Needle Assembly Machine







• The device adopts the Keyence programming control system, and the panel is easy to operate with the touch screen.

• The servo motor coating mechanism is smooth and uniform.

• The detection system adopts the Keyence CCD image from Japan, and the pneumatic configuration adopts the imported components.

• Technical process: Needle hub loading f Hub pressing f Cannula assembling f gluing f oven drying f jam detecting -> burr detecting by CCD f silicon -> rejecting - Protective cap loading cap pressing f Discharging

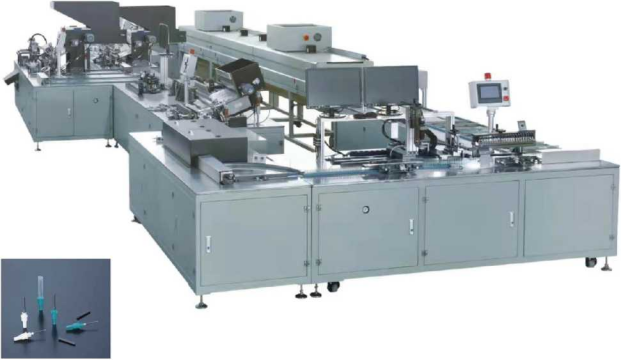

Scalp Vein Set Assembly Machine (Single, double wing)

• The machine equipped Keyence programming control system, and the touch screen is easy to operate.The servo motor coating mechanism is smooth and uniform.

• The detection system equipped Keyence CCD image module.

• Technical process:

Assembly the butterfly -> assembly the needle hub f glue coating(epoxy resin glue) f twirl the needle — twirl the needle double time f drying -> jam detection -> CCD detection of needle burr f silicification -► rejection f assemble needle cap -> press the cap f discharging

Machine Size

11000(L)x3500(W)x1450(H)mm

Weight

6000KG

Power

18KW

Air Pressure

>0.6Mpa

Airflow Quantity

1000L/min

Capacity

28000PC/hour

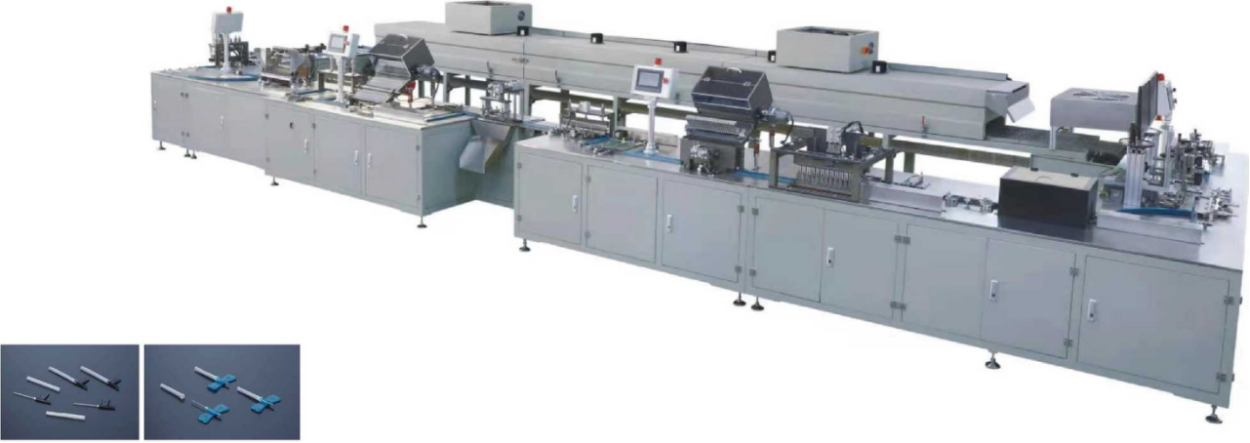

Blood Collection Needle Assembly Machine

・ The machine equipped Keyence programming control system, and the touch screen is easy to operate.The servo motor coating mechanism is smooth and uniform.

• The detection system equipped Keyence CCD image module.

• Technological process:

Hub loading f assembly cannula— glue coating(epoxy resin glue)-> drying f jam detection f CCD detection of needle burrf silicification—rejection shaving* assemble rubber protective cap f press the rubber protective cap — discharging

Machine Size

11000(L)x3500(W)x1450(H)mm

Weight

7000KG

Power

18KW

Air Pressure

>0.6Mpa

Airflow Quantity

1000L/min

Capacity

28000PC/hour

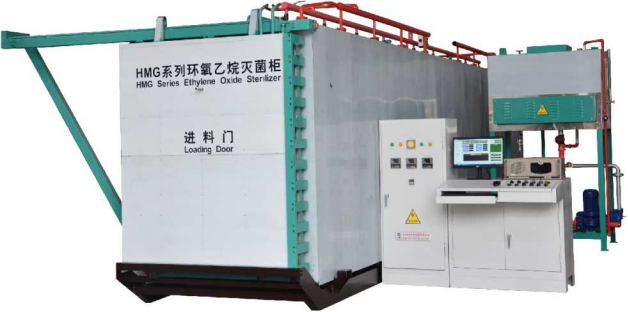

HMG-A30 EO sterillizer

• Processing method of computer control system for hot air circulation heating, automatic heat changing, automatic humidifying.

• Computer control system, automatic control of temperature, humidity and time, automatic recording, storage and print data record.

• Meet the ISO11135:2014 validation requirements.

• Configured according to user requirements specification.

Specifications

(Inner volume) 1m3-160m3

Temperature

0-65 C Auto-Control

Humidity

60%RH±10%

Time

According to sterilization process

EO Concentration

According to sterilization process

Pressure

-85kpa-80kpa

Installed power

According to the specification configuration
